Product Description

•••••

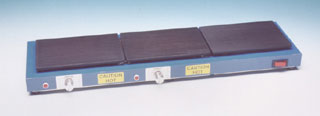

HP3-418 Industrial Laboratory Hot Plate Three Zone Manual Industrial Laboratory Hot PlateTwo Heated Zones One Cool Zone all zones are 4 inch x 6 inch Temperature Range Ambient to 280 Deg C Bi-Metal Thermoswitch Low Profile 2 inch High 120 Volts 6 Amps
  • Features and Specifications
  • Options
Untitled Document

- Low Profile Heat Platen 2 inches High

- Temperature accuracy is +/- 5 Deg. C From 0.75 inch
- of Top Plate edges.

-Two Heat Zones, each 4 x 6 inches

- One Cool zone, 4 x 6 inches

- Each of the Heat Zones are independently controlled via
- Bi-metal Thermo switches.

- Top Plate is Quarter inch Thick Aluminum.

-Flatness spec of Top Plate is 0.005 inch

-Temperature range ambient +5 to 280 Deg C

- Top Plates are Black Anodized Aluminum, Anodizing
- isolated electrical ground from the top of the Top Plate.
- This plate is grounded.

- Overall Dimensions: 2 inches High x 19.5 x 5.25 inches

- Operating voltage 120 VAC, 6 amps
