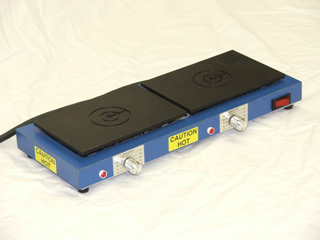

HP2-4x12 Two Heat Zones Industrial Hot Plate Each Zone 4 in x 6 in
Usually Ships in: 3-4 Weeks
Choose your options...
- Features and Specifications
Low Profile Heat Platen 2 inch High
- Temperature accuracy is +/- 5 Deg. C
- From 0.75 inch of Top Plate edges.
- Two Heat Zones, each 4 x 6 inch
- Each of the Heat Zones are independently controlled
- via Bi-metal Thermo switches.
- Top Plate is 0.25 inch Thick Aluminum.
- Flatness spec. of Top Plate is 0.005 inch
- Temperature range is ambient +5 to 280 Deg. C
- Top Plates are Black Anodized Aluminum, Anodizing
- isolated electrical ground from the top of the Top Plate.
- This plate is mechanically and electricly grounded.
- Overall Dimensions: 2 inches High x 13.5 x 5.25 inches.
- Weight 10 pounds
- Operating voltage 120 VAC, 6 amps
- Plastic Round Feet for Base
